Eclipse #9800i-Genesis

  • Self-powered permanent intelligent monitoring and flushing station
  • Monitors chlorine residual and flushes to maintain target levels
  • Can house up to 8 total sensors
  • Transmits water quality data from site to your mobile device or SCADA
  • Powered by water turbine and 24 VDC battery bank

Product request a quote

Request a Quote
Request a Demo

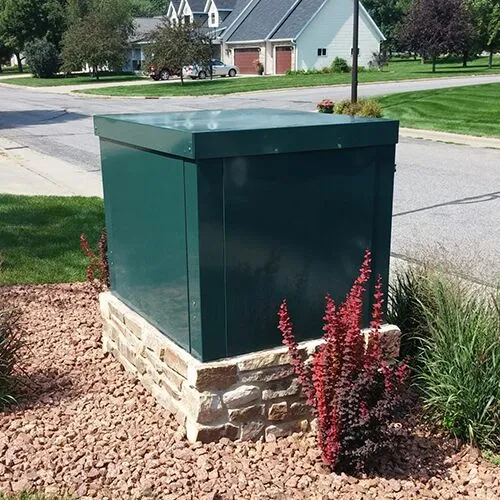

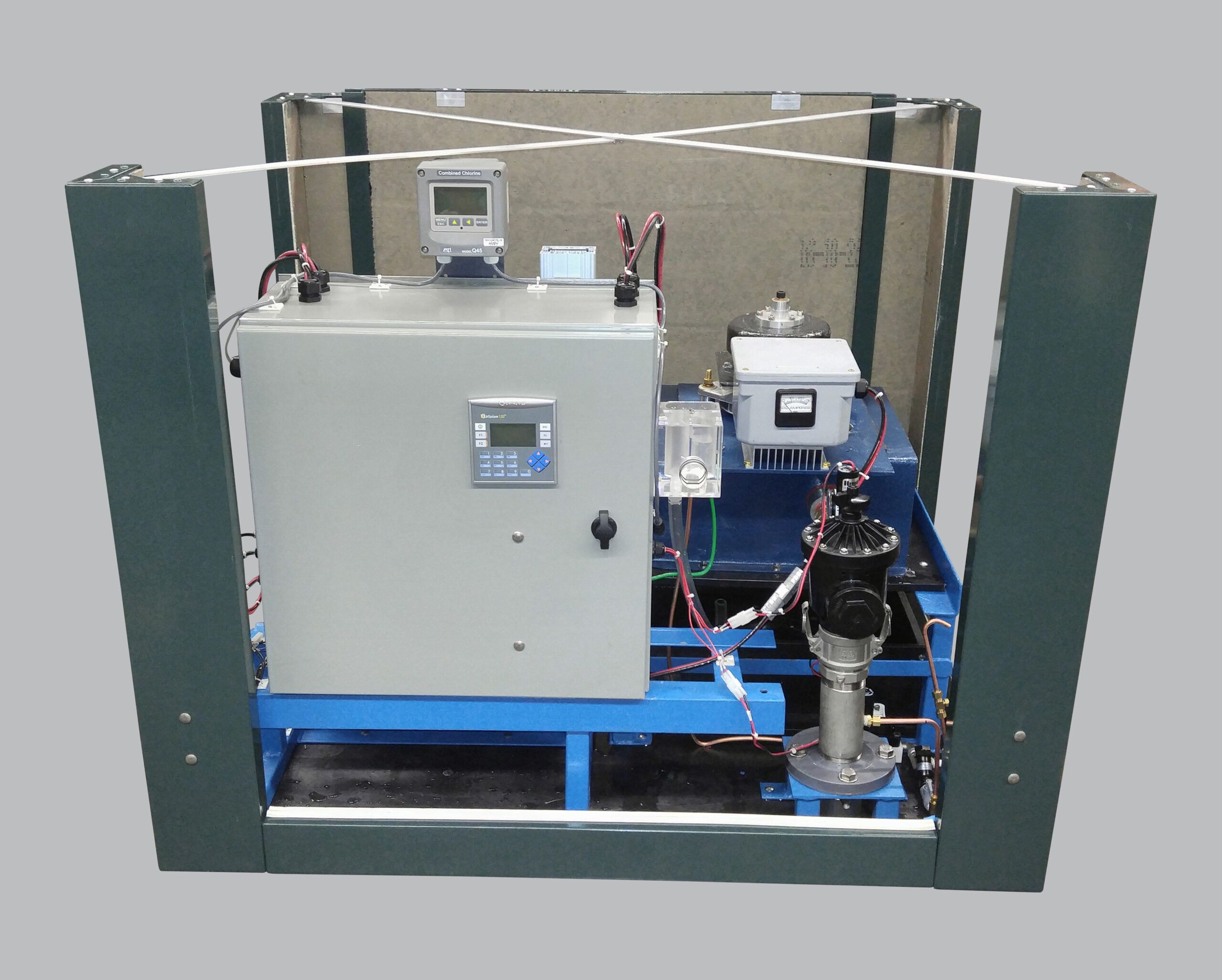

The Eclipse i-Series #9800i-Genesis is our self-powered intelligent monitoring and flushing station for any climate. With its water turbine and 24VDC battery bank, the unit does not require any outside power source. Our intelligent technology allows utilities to flush based on current chlorine residual levels rather than programming specific flush times. Its built-in chlorine analyzer and PLC allow users to program desired chlorine residual parameters and let the unit maintain those safe levels intelligently. The unit will continuously monitor chlorine residual and will only flush the waterline if levels are below the programmed minimum. The unit will flush the exact amount of water only until residual levels reach the desired programmed goal, maximizing water conservation. All #9800i-Genesis models can house up to 8 total sensors including turbidity, pH, pressure, and more. All data is logged and transmitted via an RV50 wireless gateway to your phone, laptop, or SCADA. Data can also be retrieved manually using provided MicroSD cards and adapters.

• Chlorine – Free, Combined, or Total
• Turbidity
• pH
• Pressure
• Temperature
• Other sensors and custom options upon request
• Dechlorination Option
