Automatic Flushing
Kupferle has been the leader in automatic flushing technology for over a decade providing easy solutions to improve and maintain water quality in distribution systems, especially on dead-end mains. Kupferle’s durable and easy to use automatic flushing stations help distribution superintendents and water quality managers maintain safe chlorine residuals and remove aging water before harmful disinfection byproducts (DBPs) can form. Utilizing the standard hand-held controller (or optional Bluetooth controller), users simply program a day/time/duration flushing schedule (e.g. M-W-F/2am/20 minutes). The station then flushes the line (up to 200 GPM for 2” models and 65 GPM for 1” models) at the scheduled times. Powered by a standard 9-volt battery, Automatic Flushing Stations have been shown to improve and maintain water quality while flushing up to 50% less water than flushing fire hydrants, saving time, water and money for utilities.
Products
Eclipse #9800
- Permanent automatic flushing station for cold climates
- 2” valve with flow rates up to 200 GPM (1” model also available- "9800A")
- Flushes below grade directly into a sanitary/storm sewer, drainage ditch, etc.
- Fully serviceable from above ground
Eclipse #9800WC
- Permanent automatic flushing station for warm climates
- 2” valve with flow rates up to 200 GPM (1” 9800WCA model also available)
- Flushes below grade directly into a sanitary/storm sewer, drainage ditch, etc.
- Easily maintained with working parts housed above grade
Eclipse #9400
- Permanent automatic flushing station for cold climates
- 2” valve with flow rates up to 200 GPM (1” 9400A model also available)
- Discharges to grade onto a diffusion plate
- Fully serviceable from above ground
Eclipse #9400WC
- Permanent automatic flushing station for warm climates
- 2” valve with flow rates up to 200 GPM (1” 9400WCA model also available)
- Discharges to grade onto diffusion plate
- Easily maintained with working parts housed above grade

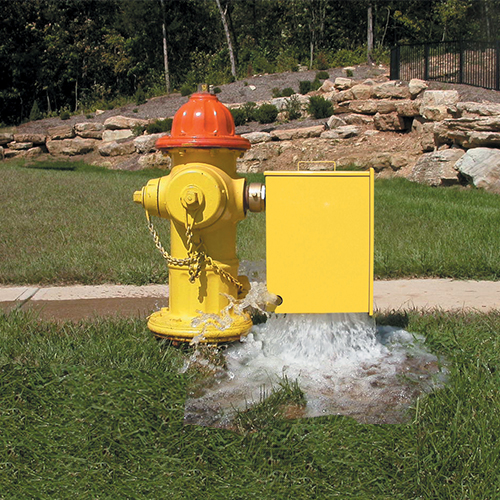

Eclipse #9700
- Portable automatic flushing device - attaches to 2.5” NST Outlet
- 2” valve with flow rates up to 200 GPM (1” model also available)
- For use during non-freezing seasons only
- Ideal for addressing immediate water quality issues
Eclipse #9497-A / Eclipse #9497-B
- 1" Automatic flushing device for meter pits (65 GPM flow)
- Can install into an empty meter pit (9497-A)
- Meter resetter allows for use in active meter pits (9497-B)
- Digital (standard) and Bluetooth controller options available
Eclipse #9800WC-3
- Permanent automatic flushing station for warm climates
- 3” valve with flow rates up to 300 GPM
- Flushes below grade directly into a sanitary/storm sewer, drainage ditch, etc.
- Easily maintained with working parts housed above grade
Eclipse #9766-MB
- Permanent 1” wall-mounted automatic building flusher
- Great for underutilized office buildings, hospitals, schools, etc.
- Installs easily in custodian closet or restroom
- Flushes to deep sink or floor drain
Eclipse #9800WC-B
- Below-grade automatic flushing station for warm climates
- Housed inside polymer meter box (provided by Kupferle)
- 2" valve rated to 220PSI, flow rates up to 200GPM
- Direct discharge to storm or sanitary sewer, French drain, etc.
Eclipse #9766-HC-MB
- Permanent 1” wall-mounted automatic building flusher
- Independent flush valves for both hot and cold water
- Great for underutilized office buildings, hospitals, schools, etc.
- Installs in custodian closet or restroom and drains to floor or deep sink
Eclipse #9800WC-BF
- Warm climate, permanent automatic flushing station with backflow
- Direct plumb inlet and discharge
- Above grade assembly for easier maintenance
- Testable dual-check backflow device

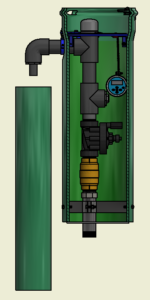

Eclipse #9800-B
- Below-grade automatic flushing station for all climates
- Housed inside lockable PVC enclosure (provided by Kupferle)
- 2" valve rated to 220PSI, flow rates up to 200GPM
- Standard 2" check valve
- Direct discharge to storm or sanitary sewer, French drain, etc.
