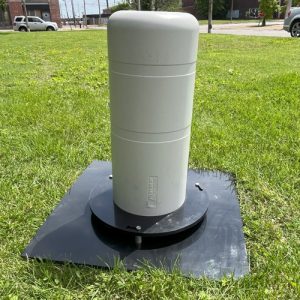

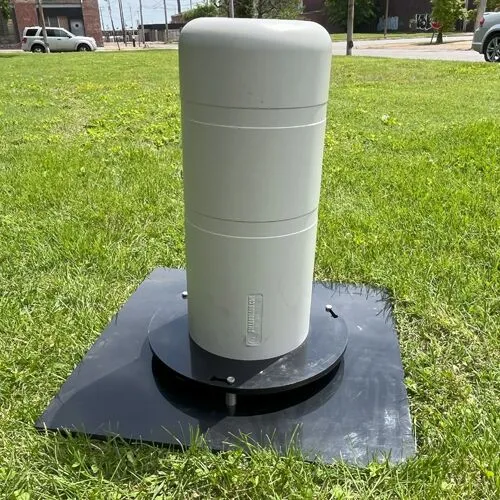

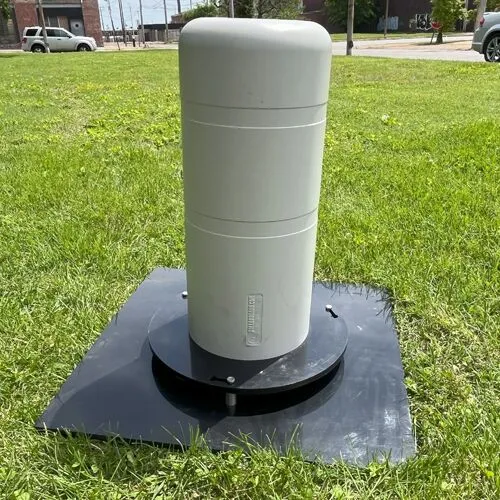

Eclipse #9400

  • Permanent automatic flushing station for cold climates
  • 2” valve with flow rates up to 200 GPM (1” 9400A model also available)
  • Discharges to grade onto a diffusion plate
  • Fully serviceable from above ground

Product request a quote

Request a Quote
Request a Demo

Improve and maintain water quality by flushing water on a scheduled basis to remove aging water in order to raise chlorine residual levels and avoid the formation of disinfection byproducts (DBPs) using the Eclipse #9400 Automatic Flushing Station. Unit features an adjustable 2” solenoid-operated valve with a 200 gpm maximum flushing capacity and a pressure rating of 220 psi. A 1” model (9400A) is also available with flow rates up to 65 GPM and a pressure rating of 150 PSI. Diaphragm valve opens and closes slowly to avoid water hammer issues. Station features a UV-resistant lockable enclosure. Maintainable above grade – no digging required.

• Depths of bury over 3′, per 6″
• Bluetooth Controller
• Check Valve (single)
• Dechlorination Option
