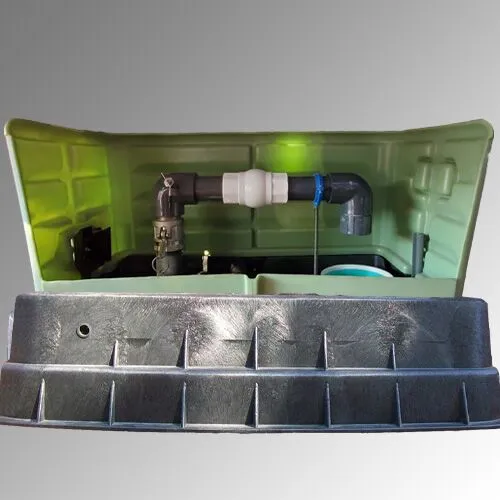

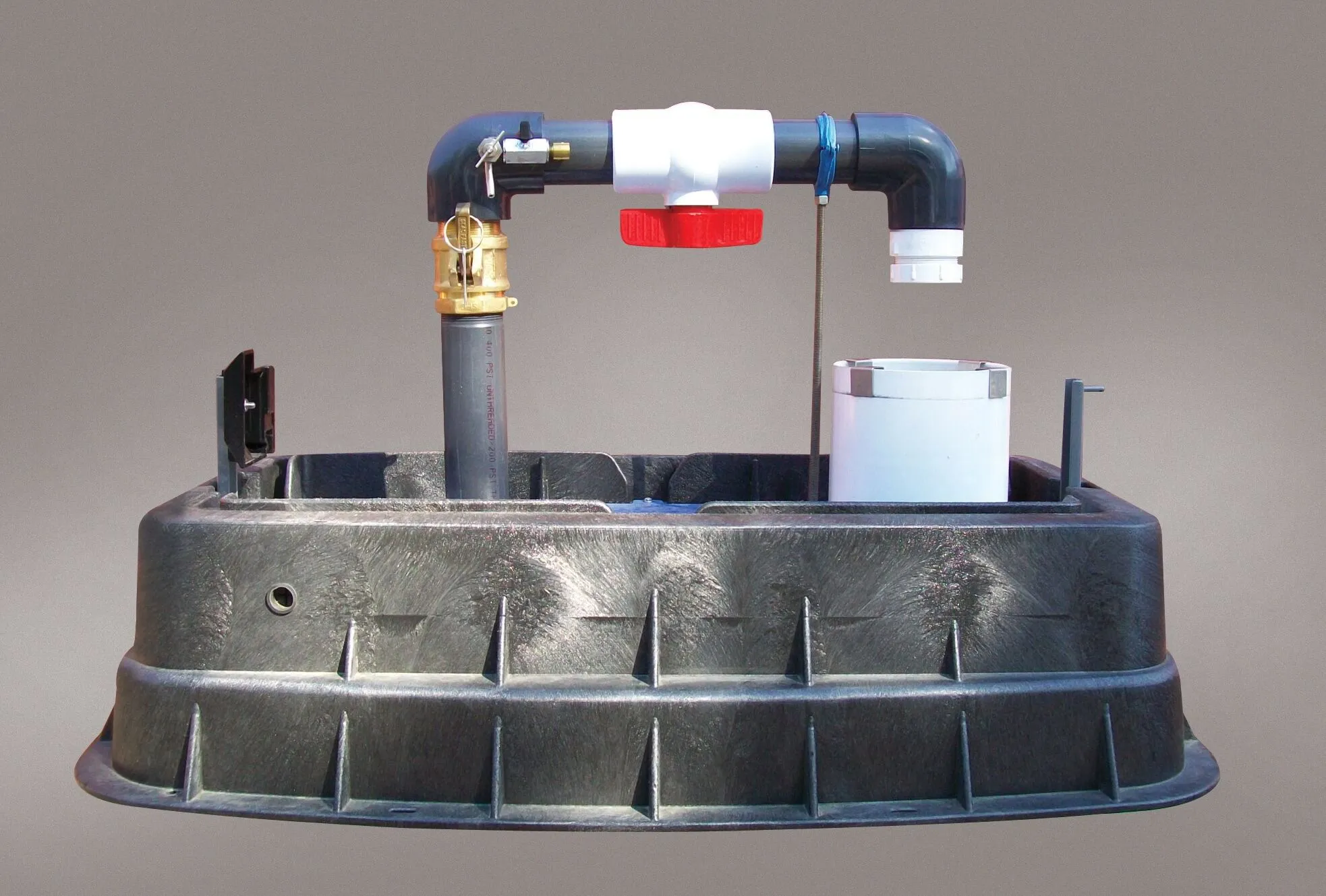

Eclipse #9800

  • Permanent automatic flushing station for cold climates
  • 2” valve with flow rates up to 200 GPM (1” model also available- “9800A”)
  • Flushes below grade directly into a sanitary/storm sewer, drainage ditch, etc.
  • Fully serviceable from above ground

Product request a quote

Request a Quote
Request a Demo

The Eclipse #9800 Permanent Automatic Flushing Station improves and maintains water quality by flushing less water more often on a scheduled basis to raise chlorine residual levels and remove aging water before disinfection byproducts form. The 9800 comes standard with a 2” automatic valve with a pressure rating of 220 PSI and flow rates up to 200 GPM. A 1” model (9800A) is also available with flow rates up to 65 GPM and a pressure rating of 150 PSI. Unit designed for cold climates taps directly to the main with a 2” tap. The solenoid-operated diaphragm valve opens and closes slowly to avoid water hammer issues and flushed water discharges below grade into a storm/sanitary sewer, culvert, or drainage ditch. The Eclipse #9800 is non-freezing and can be used year-round. Sampling point bibb comes standard with flushing unit housed inside a lockable UV resistant enclosure. Maintainable from above grade – no digging required.

• Depths of bury over 3′, per 6″
• Bluetooth Controller
• Dechlorination Option
• Check Valve
• Duckbill Backflow
