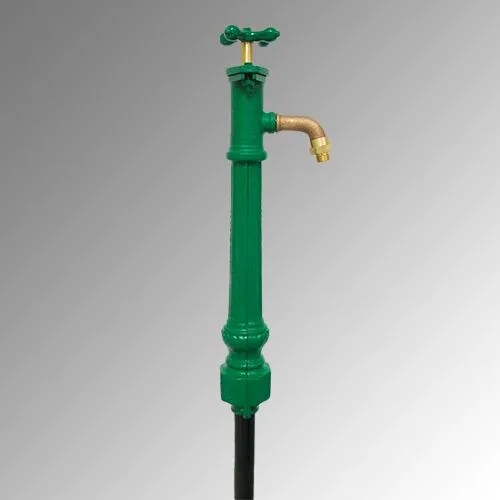

The Truflo #TF100-O Yard Hydrant provides the best in performance and value! Designed and engineered to be a general all-purpose yard hydrant. The #TF100-O has a unique cast iron ornamental casing guard and steel construction. The Truflo #TF100-O comes standard with a 1″ FIP vertical inlet, 3/4″ or 1″ GHT  outlet, 4-spoke handle, cast iron ornamental casing guard, and is self-draining and non-freezing. Bury depths available in 6″ increments. Kupferle builds all TF100s with an additional foot of standpipe which will sit above the ground line. We recommend installing a solid concrete base around this portion of exposed standpipe for added stability. Truflo #TF100-O is fully serviceable from above ground – no digging! Certified to NSF/ANSI 372.

• Depths of Bury over 3′, per 6″
• 3/4″ Vacuum breaker
• 1″ Check valve
• 1/4″ DBCV on drain
• Epoxy mastic coating on casing (below grade)
• 1/4″ tapped drain port
