Eclipse #2

  • 2” post flushing hydrant for dead end water main applications
  • Flow rates of up to 675 GPM @ 75 psi
  • Cost-effective alternative to fire hydrants on dead ends
  • Self-draining, non-freezing, and serviceable from above ground
  • AIS and BABA Certified versions available upon request

Product request a quote

Request a Quote
Request a Demo

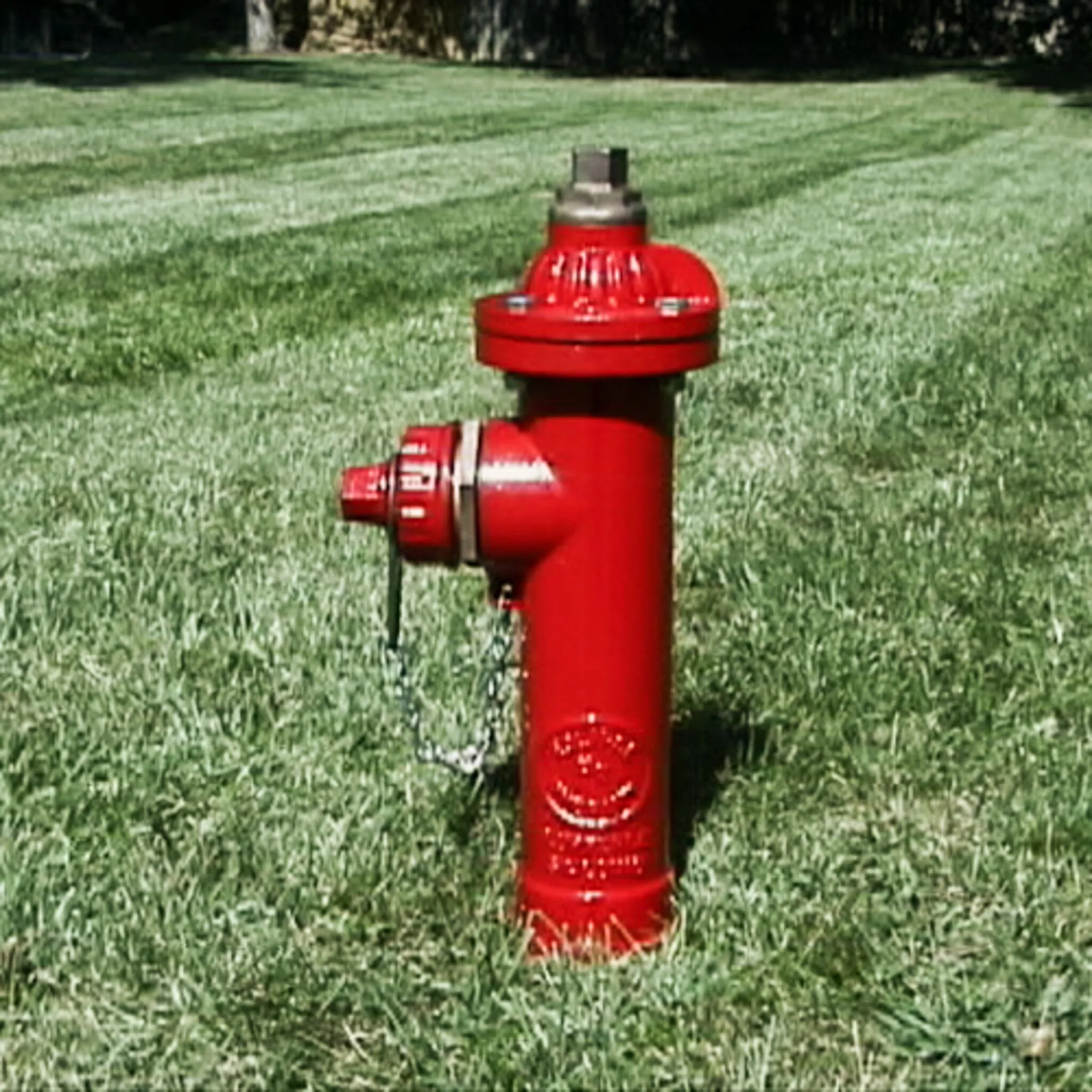

The Eclipse #2 post hydrant has been one of the best selling flushing hydrants for water main dead ends for over 100 years. Designed for performance and durability, the Eclipse #2 provides excellent flow rates for improving chlorine residual levels and flushing disinfection byproducts (DBPs) to keep water safe for consumers. The Eclipse #2 comes standard with all brass principle working parts, multiple inlet choices up to 4″ MJ, and multiples outlets up to 2½” NST, and is self draining and non-freezing. The Eclipse #2 is fully serviceable from above ground. Certified to NSF/ANSI 372.

• Depths of bury over 3′, per 6″
• FIP inlets of 2″, 2 ½”, 3″ available
• MJ inlets of 2″, 3″, 4″ available
• Two nozzle option available
• Solid operating rod
• Bolted flange top-stock
• Tamper proof option
• Check Valve and/or backflow prevention
