Eclipse #85

  • Below-grade 2” blow off for dead end water main applications
  • Housed below ground inside cast iron box (non-traffic rated)
  • All brass working parts and is self-draining and non-freezing
  • Fully serviceable from above ground, no digging required
  • AIS and BABA Certified version available upon request

Product request a quote

Request a Quote
Request a Demo

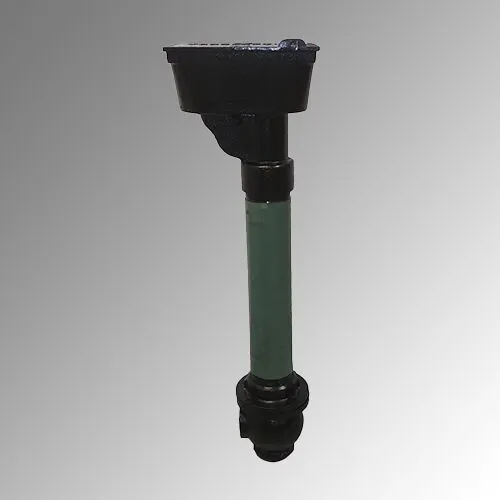

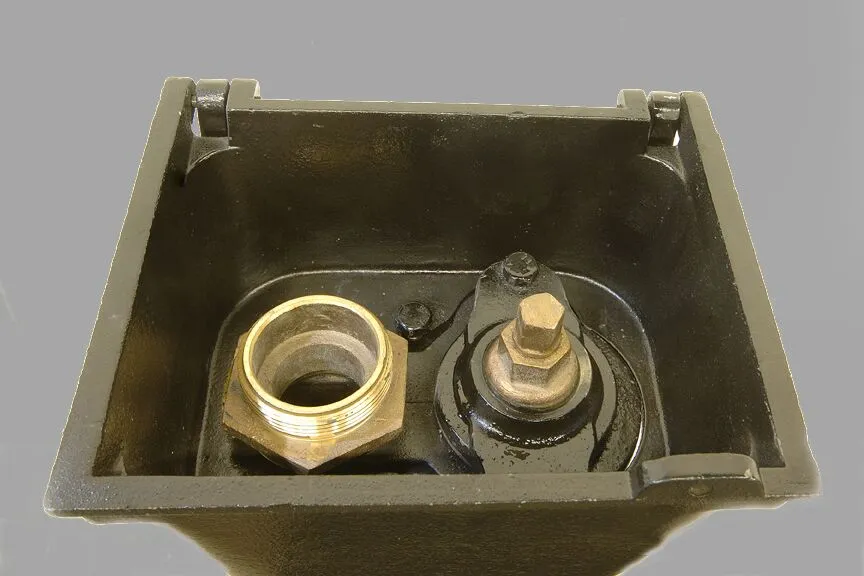

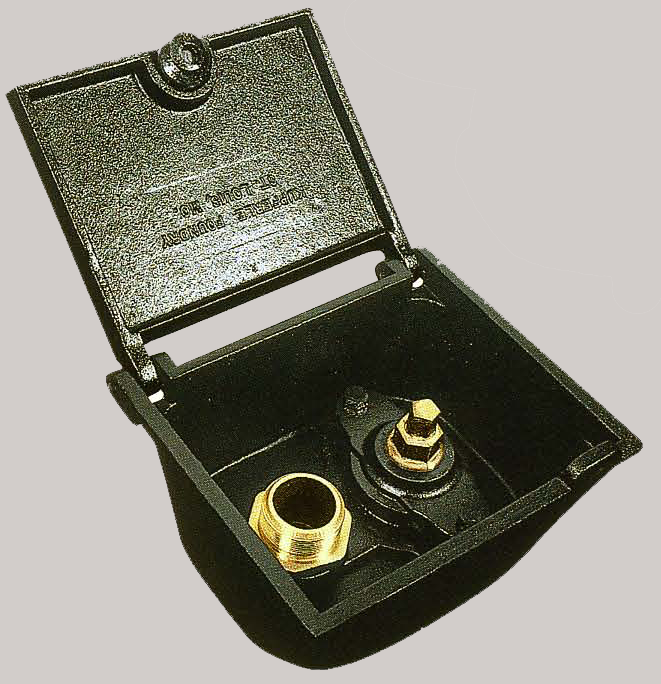

The Eclipse #85 Blow-Off Hydrant is designed and engineered specifically for flushing and provides excellent flow rates for improving chlorine residual levels and flushing disinfection byproducts (DBPs) to keep water safe for consumers. The #85 Eclipse Blow-Off Hydrant is designed with a heavy wall cast-iron box. The box sits at ground level and is non-traffic rated. The Eclipse #85 comes standard with all brass principle working parts, multiple inlet choices up to 4″ MJ, and multiples outlets up to 2½” NST, and is self draining and non-freezing. The Eclipse #85 is fully serviceable from above ground. Certified to NSF/ANSI 372.

• Depths of bury over 3′, per 6″
• FIP inlets of 2″, 2 ½”, 3″ available
• MJ inlets of 2″, 3″, 4″ available
• Nozzle cap
• Brass interior or exterior
• Full backflow prevention
