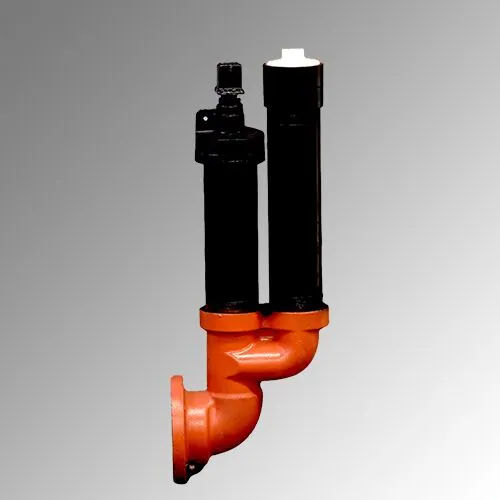

MainGuard #7600

  • 4” below grade blow-off for dead-end water mains
  • Housed below grade in a meter box
  • Flow rates of up to 1,550 GPM @ 75 psi
  • Fully serviceable from above ground – no digging

Product request a quote

Request a Quote
Request a Demo
The MainGuard #7600 blow-off installs underground in a meter box and is designed and engineered specifically for flushing large amounts of water quickly. The unit provides excellent flow rates comparable to a standard fire hydrant at half the cost. The MainGuard #7600 blow-off hydrant provides a high flow rate for scouring applications such as unidirectional flushing and the unique valve design allows for flushing of large debris. The MainGuard #7600 comes standard with all brass principle working parts, 4” MJ inlet and 4" FIP outlet, and is self draining and non-freezing. The MainGuard #7600 is fully serviceable from above ground. Certified to NSF/ANSI 372.
• Depths of bury over 3', per 6"
• 6" MJ Inlet
