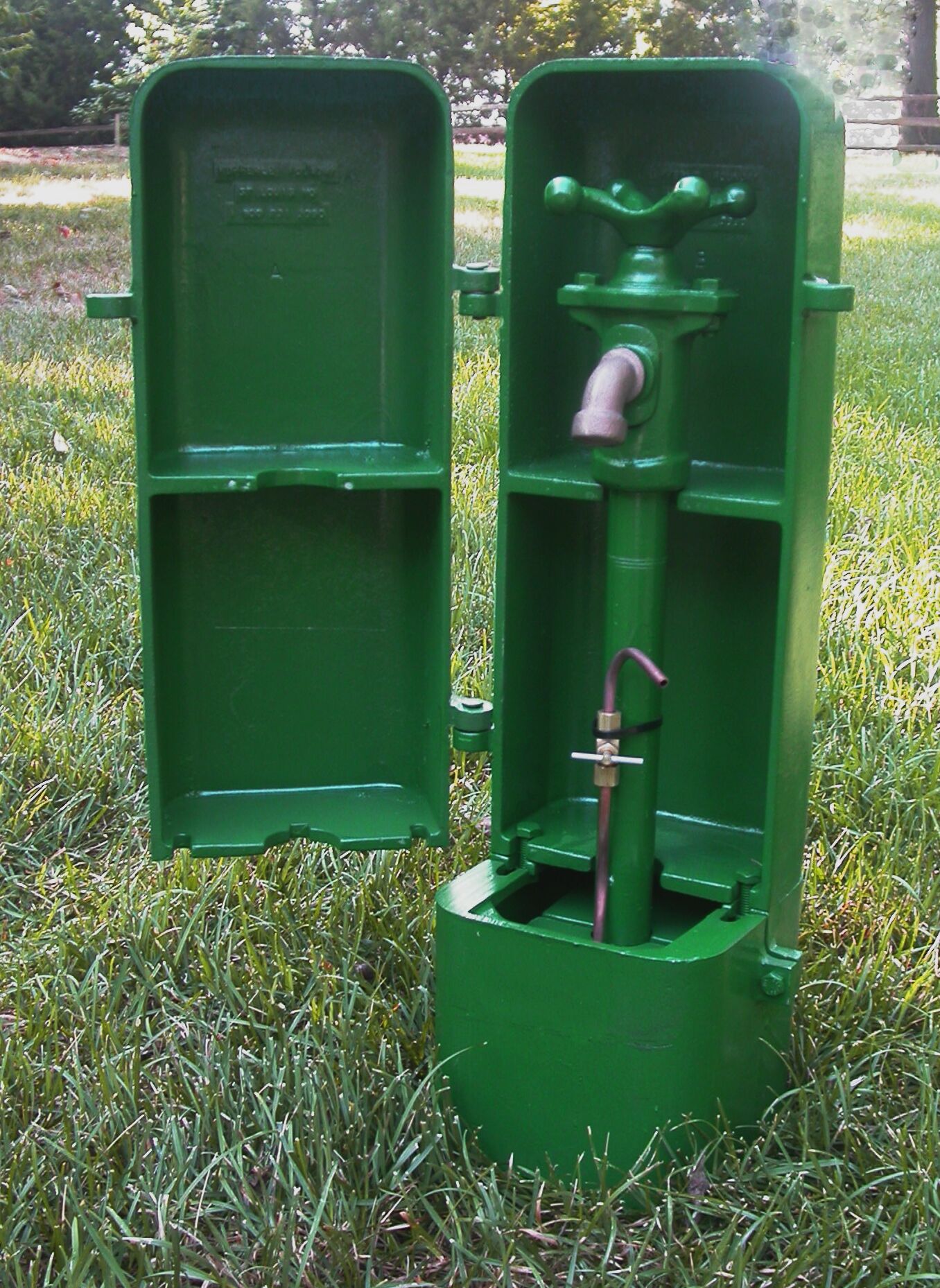

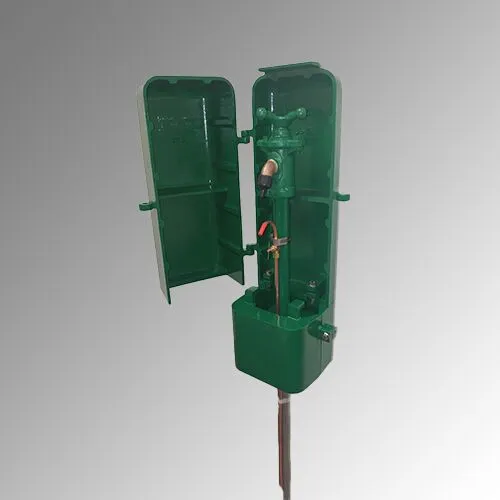

The Eclipse #88 Sampling Station is designed specifically for collecting bacteriological and other water samples at a designated point directly from the water main. The #88 provides a 24/7 designated sampling site to retrieve samples at any time versus sampling from homes and businesses. Sampling stations have been shown to lower false positives, speed collection times, and reduce liability concerns. Sampling stations have been approved for use in the EPA’s Total Coliform Rule. The Eclipse #88 is a non-draining unit that comes standard with a stainless steel and lead free brass waterway and a lockable cast-aluminum enclosure. Vinyl caps are placed on all nozzles to keep contaminants out and keep the waterway clean. Unit is manual-draining, non-freezing with use of an attachable manual hand pump (sold separately). An extreme cold climate protection package recommended for bury depths of 5’ or greater is also available. The Eclipse #88 is fully serviceable from above ground. Certified to NSF/ANSI 372.
• Depths of bury over 3', per 6"
• ¼" Ball valve assembly
• Nozzle and psi gauge assembly
• Brass exterior piping
• Extreme cold climate option (for bury at 5' and more)
• 2½' or 3' Pedestal
• Utility's logo on box
• Electric Evacuation Pump
• Evacuation Pump Kit (part #88p-1S)
• Larger pump for extreme cold climate (part #Z88PS)
• Special powder-coated paint
