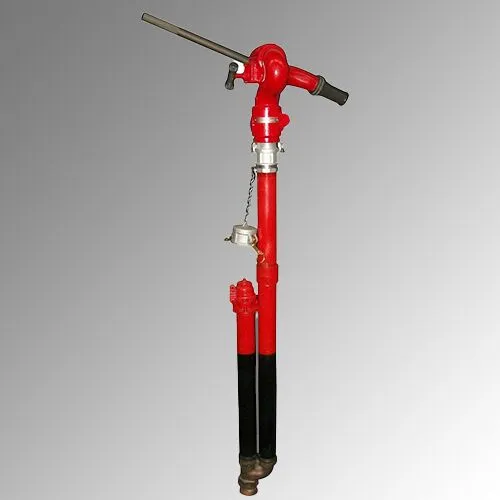

MainGuard #77M

  • 2″ Monitor washdown hydrant
  • Permanent Install (2″ inlet)
  • Wash out your retention basins, clarifiers, etc.
  • Spray up to 95 feet at up to 380 GPM
  • Reduce clean up time and liability
  • AIS Certified version available upon request

Product request a quote

Request a Quote
Request a Demo

The MainGuard #77M Monitor Washdown Hydrant provides the best in performance and value. Designed and engineered specifically for washdown applications, the #77M provides excellent high-stream flow rates using a water monitor for cleaning out retention basins, clarifiers, or other plant clean up applications. The unique inlet valve design allows for a full clear-channel flow that is superior to other washdown hydrants for moving water effectively. The #77M is a freeze-less hydrant that drains to ground and can be used year round. The MainGuard #77M comes standard with a 2” FIP vertical/straight inlet (optional side inlet available). The MainGuard #77M is fully serviceable from above ground.

• Sidewinder monitor (stream shaper w/ 1-3/8″ nozzle)
• Depth of bury over 3′, per 6″
• 2″ FIP 90° horizontal (side) inlet
• 2″ MJ inlet iron w/Epoxy Coating
• 2″ MJ inlet all brass adapter
