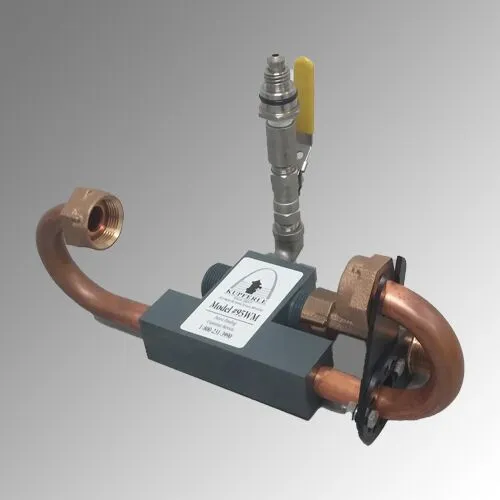

MainGuard #95WM

  • Easily Installs in 5/8″x 3/4″ meter setter (1″ size available)
  • Brass & Stainless Waterway with schedule 80 PVC body
  • Sampling rod and carrying case sold separately
  • Sampling rod includes blow-off and sample point
  • NSF 61 Certified

Product request a quote

Request a Quote
Request a Demo

The MainGuard #95WM Sampling Station is designed specifically for collecting bacteriological samples at a designated point directly from the water main. The #95WM provides a 24/7 designated sampling site to retrieve samples at any time versus sampling from homes and businesses. Sampling stations have been shown to lower false positives, speed collection times, and lower liability concerns. Sampling Stations have been approved for use by the EPA’s Total Coliform Rule.
The MainGuard #95WM is a non-draining re-setter that fits into a standard meter box. This unit comes standard with type I extruded schedule 80 PVC body, copper horns with brass meter nuts and rotatable horns that allow for different angled installations. The horns are also removable which allows for easy replacement. This unit comes standard with an all stainless steel threaded sampling point and a PVC spacing idler (brass dual check valve available) and isolation shut-off maintenance valve. The sampling rod (sold separately) includes a multi-directional swivel blow-off head and separate sampling bibb. PATENTED


• Brass dual check valve
• Brass valve cover (part #X94WMVC)
• Sampling Rod (36″) (part #Z94PR)
• Sampling Rod Case (part #X94-CC)
